Single-phase DC leakage current transducer

HOME > Current > DC Leakage Current Transducer

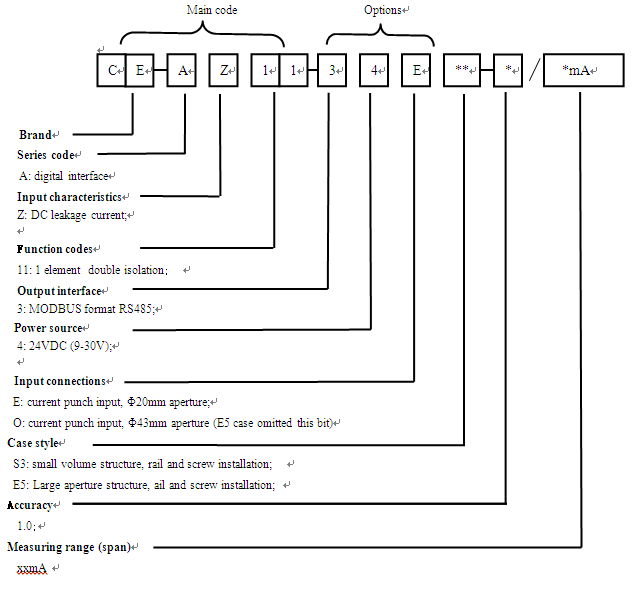

  • ENTRIES:Part Number GuideData SheetFAQ
  •

    This product is an electrical isolation transducer of DC micro-current measurement. Measurements for the perforated structure are with no insertion loss, high overload capacity, strong anti-electromagnetic interference capability and wide range of power supply, and the input and output are not common ground. The input signal is the DC micro-current and output is the RS-485 communication interface, it can be used to measure the DC system insulation leakage current and in DC power supply circuit insulation monitoring.


    Data Sheet

    ²   Accuracy: 1.0%;

    ²  Output: Measured leakage current

    ²  Output interface: RS-485(twisted pair line), communication distance:1200m, ±15KV ESD protection



    ²  Communication protocol: MODBUS protocol

    ²  Input: DC current--- 0~±10mA,0~±20mA; 0~±200mA;

    ²  Baudrate: 9600bps (2400, 4800 bps);

    ²  Refreshing period:  ≤ 350 mS;

    ²  Working temperature: 0~50;

    ²  Temperature drift:      200 ppm/;

    ²  Isolation voltage:      ≤ 3000 V DC;

    ²  System power consumption:    ≤250mW  (+12V24V);

    ²  Input overload: Current 15 times the rated value;

    ²  Power supply: 12, 15, 24V  ±5%.




    CE-AZ11-34ES3 Case Type


    CE-AZ11-34ES3 Installation Diagram

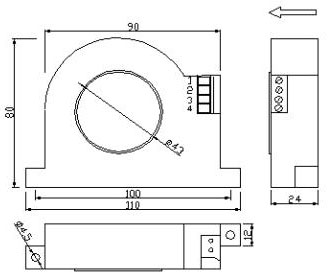

    CE-AZ11-34E5 Case Type


    CE-AZ11-34E5 Installation Diagram


        Wiring diagram of 1-phase current input of E5 case


    Wiring diagram of 2-phase CE-AZ11-**ES5
