Temperature transducer

HOME > PRODUCT > Temperature

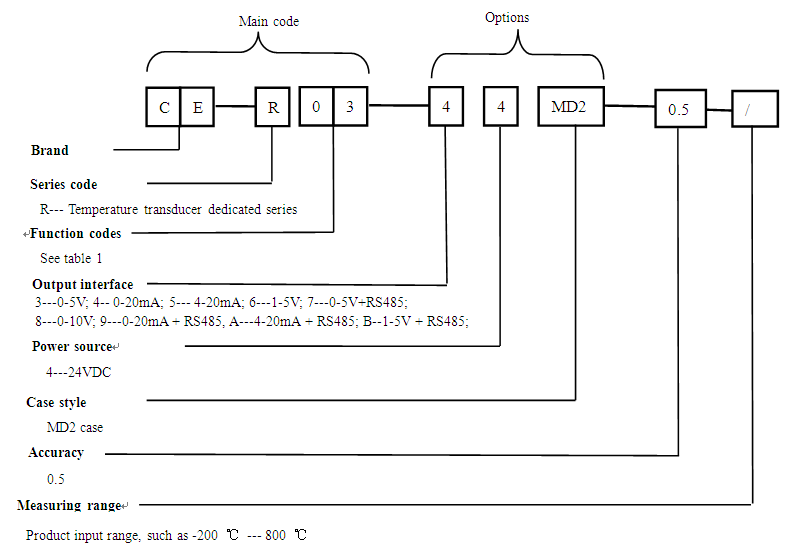

  • ENTRIES:Part Number GuideData SheetFAQ
  • This series of products use professional MCU and 24-bit high-precision AD for data acquisition, non-linear processing algorithms and isolated measurement of the various models of thermal resistance and thermocouple signals, The transmission output is standard DC signal of 0 ~ 20mA , 0 ~ 5V, 4 ~ 20mA or 1 ~ 5V, with high precision, high isolation, low power consumption, low drift, wide temperature range, strong anti-interference ability and so on. The transducer uses a fully isolated design, that is, input, output and power are isolated from each other, eliminating the mutual interference between the signals. This product is widely used in electric power, communication, railway, mining, metallurgy, transportation, instrumentation and other industries because of its ultra-thin housing DIN rail card-mounted structure, plug-in terminal wiring, installation and maintenance convenience.


    Data Sheet

    Test conditions: auxiliary power: +24 V, room temperature: 25 ℃;
    Detection signal type: thermal resistance: PT100, PT1000, BA1, BA2, CU50, CU53,R;
    thermocouple B, S, K, E, T, J, R, N, voltage signal;
    Isolation: treble-isolated, input, output and power isolation between each other;
    Isolation voltage: >2500V DC;
    Response time: ≤500mS;
    Accuracy: 0.5;
    Temperature drift: <500ppm/℃;
    Rated power consumption: <2W;
    Power supply: 24V±20%;
    Load capacity: current output ≤250Ω; voltage output ≥2kΩ;
    Communication: RS485/MODBUS protocol;
    Output ripple: ≤10mV;
    Frequency response range: none;
    Working temperature: -10~60℃;
    Data format (factory default): Baud rate 9600, Address: 1, Data: 8 data bits, no parity, 1 stop bit;
    Lightning surge: power input± 4KV; voltage output ± 2KV; current output ± 2KV; communication port ± 2KV;
    Anti-group pulse: power input;± 2KV; voltage output ± 2KV; current output ± 2KV; communication port ± 2KV;
    Weight: 121g;
    Storage conditions: -40 ~ +70 ℃.



    Code

    Signal   type

    Measurement   range

    Code

    Signal   type

    Measurement   range

    01

    Resistance value

    0-10KΩ

    10

    S type thermocouple

    0 -- 1600

    02

    PT1000

    -200 -- 800

    11

    K type thermocouple

    0 -- 1300

    03

    PT100

    -200 -- 800

    12

    E type thermocouple

    0 -- 1000

    04

    BA1

    -200 -- 600

    13

    T type thermocouple

    -200 -- 400

    05

    BA2

    -200 -- 600

    14

    J type thermocouple

    0 -- 1200

    06

    CU50

    -50 -- 150

    15

    R type thermocouple

    0 -- 1600

    07

    CU53

    -50 -- 150

    16

    N type thermocouple

    0 -- 1300

    08

    Customize thermal resistance


    17

    Customized thermocouple types


    09

    B type thermocouple

    400 -- 1800

    18

    Voltage signal

    0--2V



                                                                                   Figure 1, outline drawing





                                                             Figure 2, wiring diagram of thermal resistance input




                                                             Figure 3, wiring diagram of thermocouple input

    Ultra-thin shape design, plug terminal wiring, easy to use on-site;
    A variety of output, which can output the standard transmission signal and RS485, user-friendly;
    It can switch the analog signal output to 0-20mA (0-5V) or 4-20mA (1-5V) through the internal DIP switch.
