This product is a two-channel AC current acquisition and measurement digital isolation transducer. It can measure the two-channel current of the AC circuit. Using high-precision 24-bit dedicated AD chip, the ratio dynamic range can be up to 1000: 1. True RMS measurement of current is with high accuracy, good stability and high communication speed, the completely isolated processing technology is with anti-interference ability. Measurement of electrical parameters through the RS-485 digital interface output to achieve long-distance transmission, the product MODBUS protocol is complete compatible with a variety of configuration software or PLC equipment MODBUS (RTU) protocol. It can be applied to power, room monitoring, industrial measurement and other fields.Data Sheet

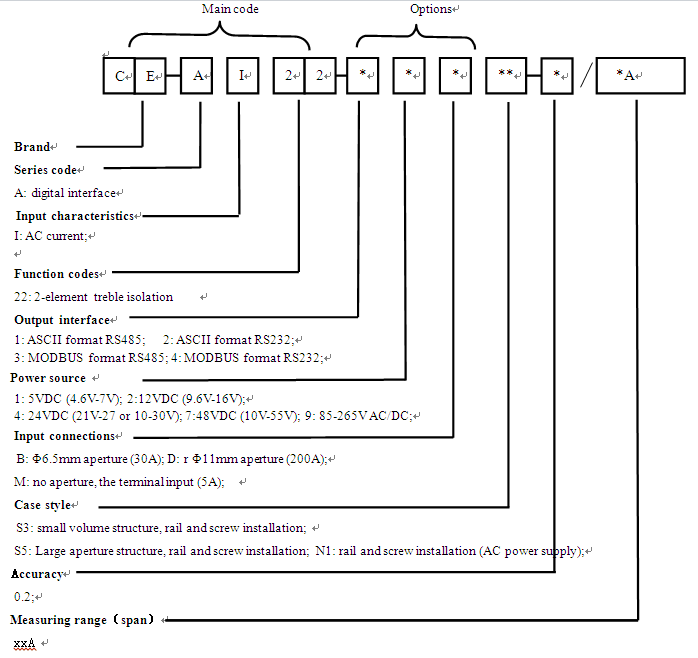

S3 case: 30A;
S5case: 800A; N1case: 5A;
The maximum range for each specification
Frequency response: 20Hz-1KHz; Frequency measurement: 20-600Hz
115.2K, 57.6K, 38.4K, 19.2K, 9600(default) 4800, 2400, 1200
Factory default communication format: 9600, N / 8/1, address 1; S5 type up to 19.2K;
RS-485(twisted pair line) , RS-232C(treble line, only for N style parts)
None, Even, Odd, Space
Max. number of nodes
Only for RS-485
400W transient voltage
ESD protection and thermosnap
Input/output: 2500V DC for 1 min
Input/power supply：2500V for 1 min
Output/power supply：2500V for 1 min
The double isolation part numbers, their output and power supply are grounded together, there is only between the input and output isolation voltage
2 x voltage span 1 sec. 10 for times with interval of 10 sec.
10 x current span for 1 sec. 5 times with an interval of 300 sec (only for hole thru. parts)
The input outside the linear range will result in poor accuracy
Auxiliary power supply
220VAC,DC only for N case parts
Power consumption depends on power supply to be used

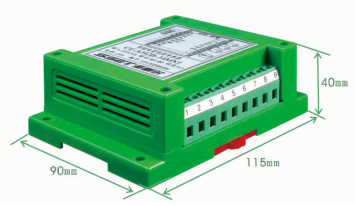

Case Style (marked in the figure Unit: mm)

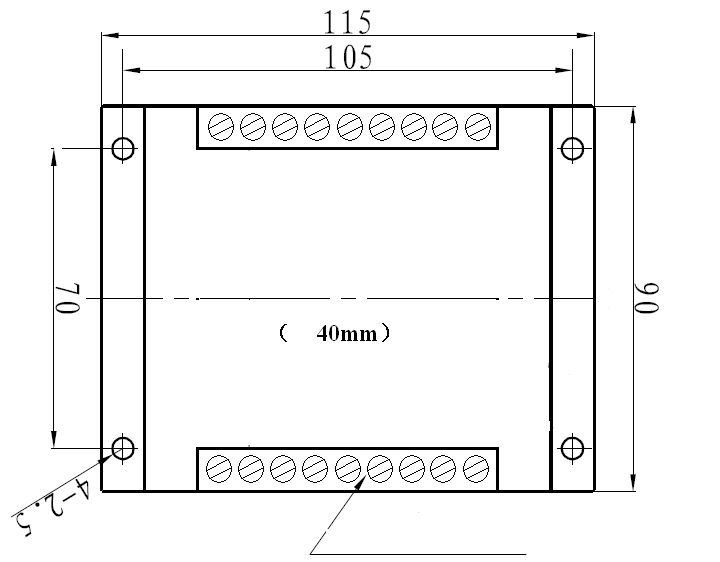

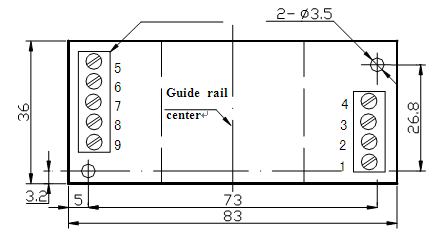

Figure 5.1 CE-AI22-**BS3 product outline
Figure 5.2 Installation diagram of CE-AI22-**BS3
Figure 5.3 CE-AI22-**MN1 product outline (220VAC power supply)
Figure 5.4 Installation diagram of CE-AI22-**MN1

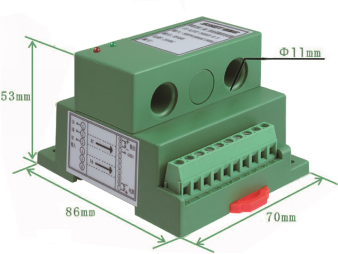

Figure 5.5 CE-AI22-**DS5 product outline
Figure 5.6 Installation diagramCE-AI22-**DS5
Terminal definition and connection diagrams
S3 case 2-phase current connection diagram reference figure 6.1(Current punch input, Φ6.5mm, max. 30A)

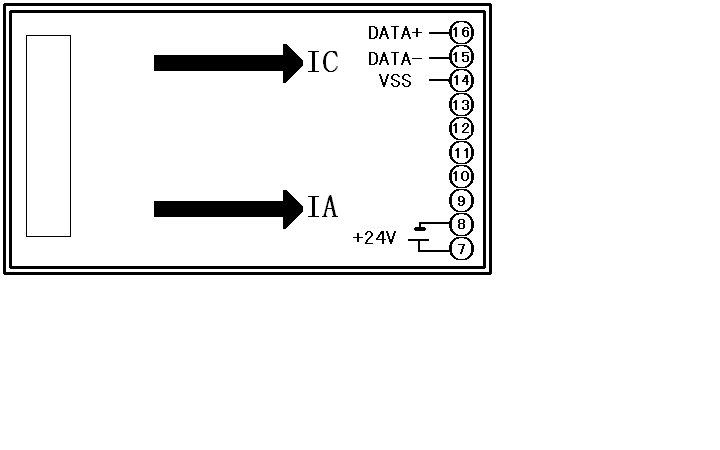

Figure 6.1 CE-AI22-**BS3 wiring diagram
(Terminal 7 output is +5 V to provide 5V output (<20mA) in common ground with power supply)
N case 2-channel current wiring diagram is shown in Figure 6.2; (current terminal input, the maximum 5A)
Figure 6.2 CE-AI22 - ** MN1 wiring drawing
Refer to figure 6.3 for the 2-channel current wiring diagram of S5 (current input, Φ11mm, max. 200A; Φ20mm, max. 800A)
Figure 6.3 CE-AI22 - ***S5 wiring diagram
Available with wide power supply: DC: 10-30V or 10-55V.
With odd parity, even parity, no parity, 2 stop bits and other communication methods are free to set.
Communication speed optional, the maximum communication speed to 115200 bps.
The intelligent transducer with the smallest size and wide current measurement range in the peer.
Electroplating has a positive and negative cumulative, and power-down storage function.
With red and green light-emitting diode instructions function, the red light indicates the normal operation of the product (100mS flashing), the green light indicates the product communication.
High anti-interference ability, the input, output and power port to resist the surge voltage up to 2KV or more.
