D series closed-loop Hall Effect current transducer
It is used to measure DC, AC and pulse currents and has a wide measuring range from tens of amps to one thousand amps. The primary and secondary sides are highly insulated. The housing complies with the UL94-V0 standard. Small size, light weight and no insertion loss.
Rated input: 0-±100A~±500A DC
Output: ±50mA, ±80mA, ±100mA, ±150mA optional
Turns ratio: 1:2000, 1:5000
Accaracy: ±0.5%
Linearity:0.2%
Temperature drift: 0.025%/℃
Response time:<1µS
Isolation: 3KVRMS/50Hz/1Min
Operating temperature: -10℃~+85℃
Power supply: ±12V,±15V,±24 optional
Current consumption: ±28mA+output current
WIndow: ø25mm
Overload:20 times of the maximum value of measuring range
CE-IZ04-**D3-0.5

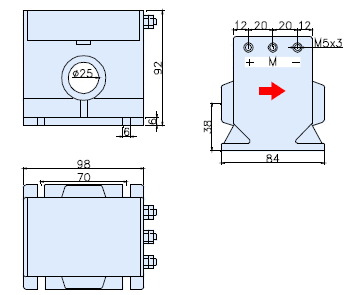

D3 case style(mm)
+: Positive power supply
-: Negative power supply
M: Signal output
G: Ground
Connection diagrams of dual power supply
