A series Hall Effect current transducer
It is used to measure DC, AC and pulse currents and has a wide measuring range from tens of amps to one thousand amps. The primary and secondary sides are highly insulated. The housing complies with the UL94-V0 standard. Small size, light weight and no insertion loss.
Rated input: 50A~500A DC
Output: 75mV, 1V, 4V, 5V, optional
Precision and linearity: ±1%
Temperature drift: 0.025%/℃
Response time:<7µS
Isolation: 3KVRMS/50Hz/1Min
Operating temperature: -25℃~+85℃
Power supply: ±12V,±15V optional
Current consumption: ±18mA
WIndow: ø16mm
Overload: 20 times of the maximum value of measuring range
CE-IZ04-**A6-1.0

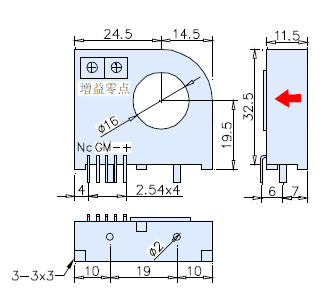

A6 case style(mm)
+: Positive power supply
-: Negative power supply
M: Signal output
G: Ground
Connection diagrams of dual power supply
