Smart Railway Ballast Resistance Detector

HOME > PRODUCT > Instrument and System

  • ​ENTRIES:Part Number GuideData SheetFAQ
  • CE-YR01 Smart Railway Ballast Resistance Detector is mainly used for measuring ballast resistance in ZPW-2000 Series UM series track circuit system.



    Based on the track circuit transmission algorithm, the electrical information of the track circuit is used as the measurement input to discover the distribution law of the rail surface current, find the mapping relationship of the rail current distribution characteristic by the ballast resistance. Furthermore it calculates the real-time Ballast resistance. At the same time, by calculating the difference vector of the surface current, the method can also identify the number of compensation capacitors.


    Data Sheet

    CE-YR01

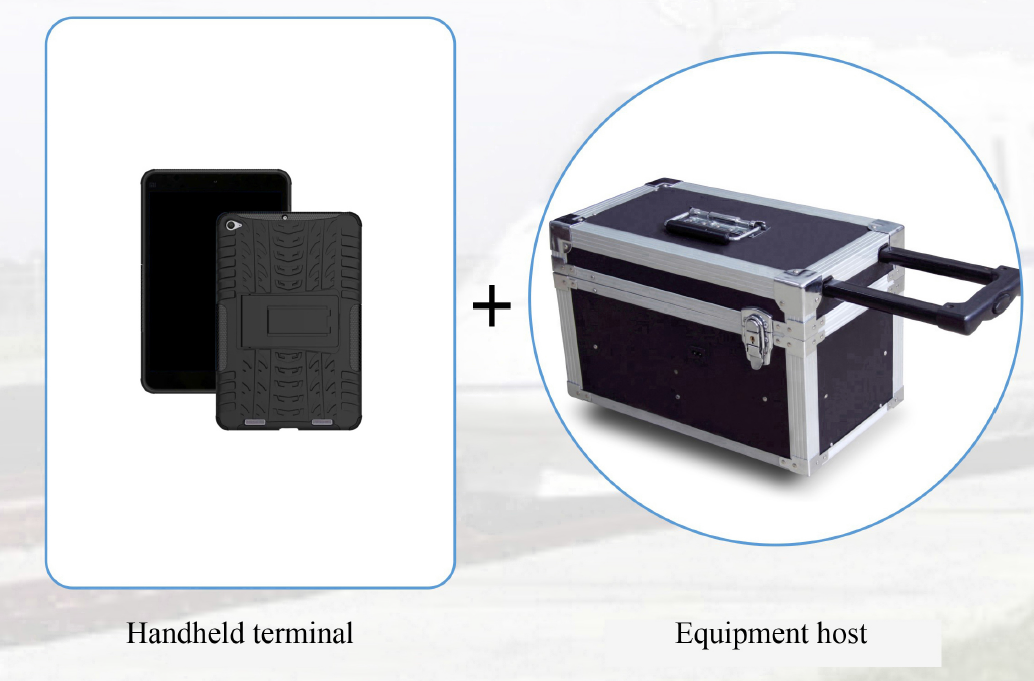

    light and easy to carry;

    User friendly, simple operation, Fast and Less Operator;

    No need to dismantle any other equipment.

    No impact on other track block sections and the sites.

    Detecting the quantity of compensation capacitor directly;

    No need to have red rail.
